General Lighting Solutions
New Products in LCBU
2835 0.2W / 0.5W High Efficiency Portfolio
Market Oriented / Price Dominated Market (Low/mid power)
| 2835 3V Series | |||||||
|---|---|---|---|---|---|---|---|
| Watt(W) | 0.2W | 0.5W | |||||
| VF(V) | 3V | 3V HE | 3V | ||||
| IF(mA) | 60 | 60 | 150 | ||||
| Min. Flux (lm) |
26lm 28lm 30lm 32lm |
32lm 34lm 39lm |
60lm ~ 85lm 90lm |
||||
| High CRI 90 R9>50 |
22lm ~ 27lm |
28lm | 50lm 60lm 70lm 74lm |
||||
| Application | Common fixture EU L customer Super High efficiency tube  |
US M customer High efficiency tube  |
|||||
2835 0.2W / 0.5W High Efficiency Portfolio
High Voltage Series 9V & 18V
| 2835 HV/Ra Series | |||||||
|---|---|---|---|---|---|---|---|
| Watt(W) | 0.5W | 1W | |||||
| VF(V) | 9V | 18V | 6V | 9V | 18V | 36V | 54V |
| IF(mA) | 60 | 25 | 150 | 100 | 50 | 25 | 20 |
| Min. Flux (lm) |
65lm ~ 83lm |
65lm ~ 75lm |
115lm ~ 155lm 160lm |
130lm ~ 165lm |
123ml ~ 145ml |
120lm 130lm 135lm |
150lm 155lm 160lm |
| High CRI 90 R9>50 |
60lm | 60lm | 103lm ~ 133lm |
110lm ~ 140lm |
105lm ~ 120lm |
110lm 110lm 115lm |
128lm 136lm 145lm |
| Application | Bulb |
Lamp AC Down light Bulb  |
Bulb |
||||
High Efficiency 3030 0.2W Portfolio
3030 Wire Bond & High Lumen Flip Chip Solution
| XI3030P 0.2W 65mA Series | ||||
|---|---|---|---|---|
| Series | KK8C | KK7C | KK6C | KK5C |
| Max. IF(mA) |
200 | |||
| VF @65mA | 2.70 | 2.72 | 2.75 | 2.75 |
| Flux @ 65mA |
40 | 38 | 37 | 36 |
| Efficiency lm/W |
222 | 215 | 207 | 200 |
| Release | MP | MP | MP | MP |
 |
 |
JP customer Dimming ceiling
High Power Portfolio
Street Light & Outdoor Lighting Application
| Model | 3535 SHWO(F) 1W Series | XI5050 1W Series | |||
|---|---|---|---|---|---|
| Watt(W) | 1W | 1W | |||
| VF(V) | 3V | 3V | 3V | 6V | 24V |
| IF(mA) | 350 | 350 | 350 | 180 | 45 |
| Min. Flux (lm) |
165lm | 175lm | 195lm | 220lm | 210lm |
| Efficiency lm/W |
157 | 166 | 185 | 205 | 195 |
| Release | MP | MP | MP | MP | MP |
 |
 |
High Power Portfolio 2022/2023
Street Light & Outdoor Lighting Application
| Model | XI5050 New Series | ||
|---|---|---|---|
| Watt(W) | 1W | 4W | 5W |
| VF(V) | 6V | 24V | 7V |
| IF(mA) | 180 | 160 | 750 |
| Min. Flux (lm) |
220lm | 700lm | 740lm |
| Efficiency lm/W |
LKE | LKE | LK5C |
| Release | 4000K 5000K |
6500K | 4000K 5000K |
|
|
5050 0.5W package RGB color light
| 5050 RGB 150mA Series | |||
|---|---|---|---|
| Type. | 5050ST/GRBC33-PU5/1T | ||
| color | Red | Green | Blue |
| Max. IF(mA) |
150 | ||
| VF @150mA | 2.3 | 3.4 | 3.2 |
| Typ. Flux @ 150mA |
25 | 40 | 8.5 |
| Wavelength (nm) |
622 | 525 | 457 |
| Release | MP | ||

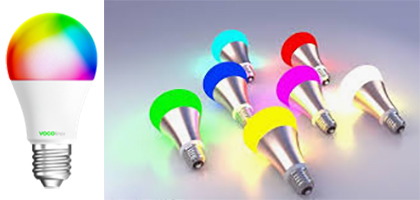

 smart bulb |
 With the module to control the light color through the APP software, the LED can use RGB+IC to achieve the effect. |
5050 0.5W package RGBW color light
| 5050 RGBW 100mA Series | ||||
|---|---|---|---|---|
| Type. | 5050/RGBWD-A100/ET | |||
| color | Red | Green | Blue | White |
| Max. IF(mA) |
100 | |||
| VF @100mA | 2.1 | 3 | 3.1 | 2.9 |
| Typ. Mcd @100mA |
5000 | 11000 | 3000 | 10000 |
| Wavelength (nm) |
624 | 528 | 468 | 2700~6500K |
| Release | MP | |||
 |
 |
 |

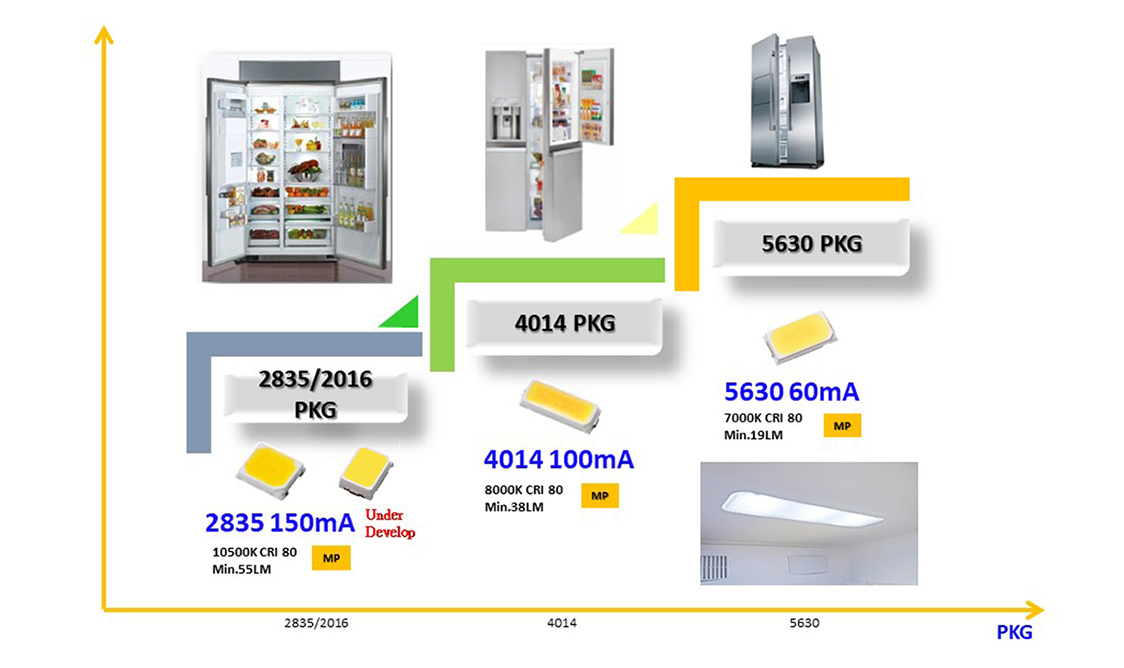

Home Appliance Roadmap
High Efficiency 4014 / 5630 Portfolio
Main Application: Fridge Light / Panel Light / Ceiling Lights
| Model | 4014 0.2W Series | 5630 0.2W Series |
|---|---|---|
| Series | KKE | KK7D KK8D KKX |
| Max. IF(mA) |
75 | 180 |
| VF(V) | 3.0V @60mA |
2.73V @65mA |
| Flux | 27lm~33lm @ 60mA |
36.5lm~39.5lm @65mA |
| Efficiency lm/W |
149~183 | 206~223 |
| Release | MP | MP |
 China customer |
 JP customer Base Light |
