Horticulture Lighting Solutions
Horticulture Main Application
| Application | Market Demand | LED Solution |
|---|---|---|
 |

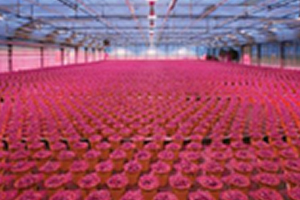

Top Lighting: In Greenhouse,addtional to sun light. High Power Luminaires |
3535 2W ELSWF DR, RB, FR, CW  |
 |
Indoor lighting: Lightsource for high power control growth condition. High power. |
3535 1W DR, RB, FR, CW |
 |

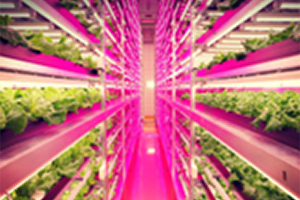

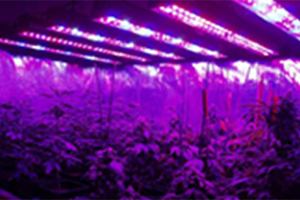

Vertical Lighting: Plant growing in vertical stacks, even without natural sun light |
3030 white ,2835DR, RB, FR, CW 2835 PC red  |
 |

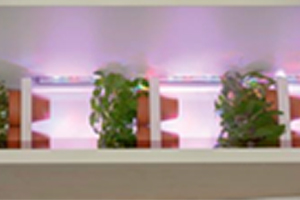

Consumer: Home planting by general consumers |
2835DR, RB, FR, CW 2835 PC red  |

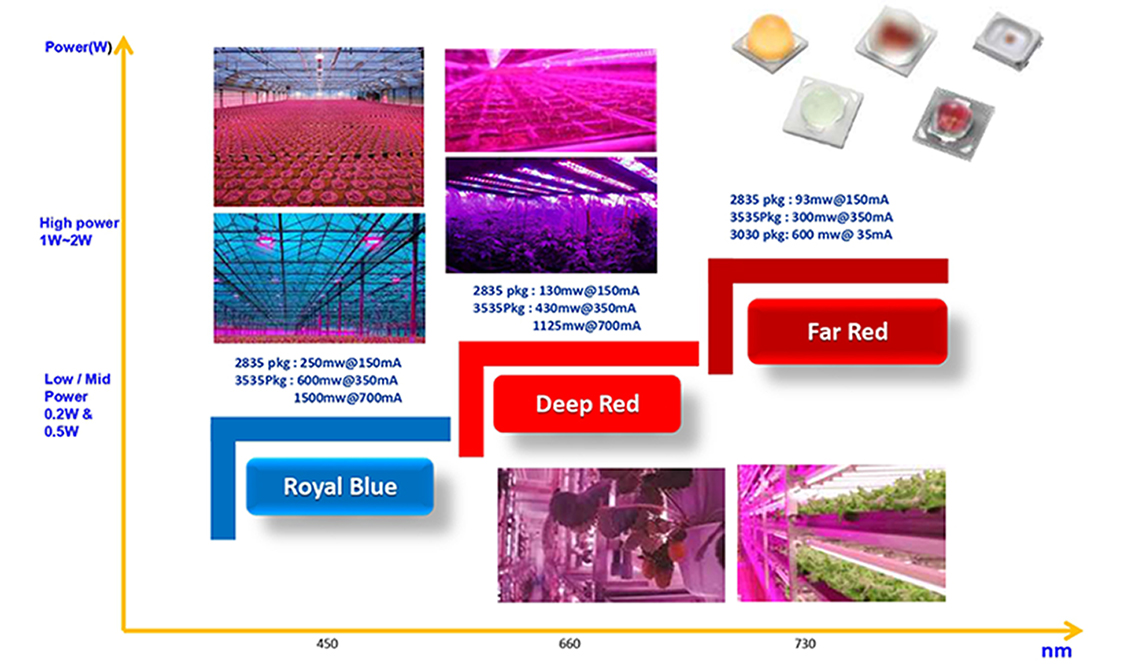

Horticulture Roadmap
High Power 3535 performance
| Power (W) |
Wavelength (mm) |
Forward current (mA) |
Minimum Radiant Flux (mW) |
Typ. Radiant Flux (mW) |
PPF (umole/s) |
PPE (umole/J) |
Typ. Forward Voltage (V) |
EL Order code | correspond Osram code |
|---|---|---|---|---|---|---|---|---|---|
| 1W | 450 | 350 | 600 | 722 | 2.75 | 2.77 | 2.84 | ELSWF-R61L1-6FPNM-CB4B6 | NA |
| 700 | 1300 | 1380 | 5.2 | 2.5 | 2.95 | ||||
| 660 | 350 | 500 | 520 | 2.7 | 3.8 | 2.1 | HPL3535CZ0112-NDR5565500X24350-1T | GH CSSPM1.24 OSLON® SSL 120 | |
| 700 | 1020 | 1050 | 4.98 | 2.98 | 2.38 | HPL3535CZ0112-NDR5565F4X24700-1T | |||
| 730 | 350 | 275 | 363 | 0.07 | 0.11 | 1.93 | ELSW-Q91F1-0LPNM-AF3F8 | GF CSSPM1.24 OSLON® SSL 120 | |
| 700 | 500 | 706 | 0.16 | 0.1 | 2.27 | ||||
| 2W | 450 | 700 | 1300 | 1500 | 5.28 | 2.5 | 3.25 | ELSWF-S41L2-6FPNM-DB4B6 | GF CSSPM2.24 OSLON® Square |
| 1000 | 1600 | 1898 | 7.15 | 2.35 | 3.04 | ||||
| 660 | 700 | 940 | 1022 | 5.5 | 3.6 | 2.18 | ELSWN-S11E2-5EPNM-AD3D8 | GH CSSRM3.24 OSLON Square | |
| 1000 | 1300 | 1404 | 7.5 | 3.1 | 2.42 | ||||
| 700 | 950 | 1070 | 5.83 | 3.87 | 2.15 | HPND3535CZ0112-NDR55651K0X24700-4H | GH CSSRM4.24 OSLON® Square | ||
| 1000 | 1300 | 1500 | 8.28 | 3.47 | 2.38 |
New Product PPE 4.0 Comparison
| GH CSSRM4.24 OSLON® Square | HPND3535CZ0112 Series | |
|---|---|---|
| Size | 3.0*3.0*2.17 | 3.5*3.5*2.31 |
| Viewing angleθ | 120° | 120° |
| VF (V) | 1.8-2.2 | Typ.2.15 |
| Peak Wavelength λp | 646~666 (nm) | 655-665(nm) |
| PPF (μmol/s) | 5.24~6.12 | 5.69~5.98 |
| PPE (μmol/J) | Typ 3.9 μmol/J @ 700mA | Typ 3.9. μmol/J @ 700mA |

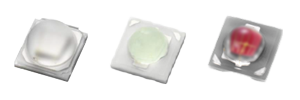

| Picture |  |
 |
| Order Code of | Min. Radiant Power (mW) |
Typ.Radiant Power (mW) |
Peak Wavelength (nm) |
Typ.PPF (umole/s) |
Typ.PPE (umole/J) |
Typ.Forward Voltage (V) |
|---|---|---|---|---|---|---|
| HPND3535CZ0112- NDR5565950X24700-4H |
950 | 1070 | 655~665 | 5.83 | 3.87 | 2.15 |
High Power 3030 performance
Medium power application: greenhouse and vertical cultivation (hemp/vegetables)
Viewing angle 90 degree
 |
Product | CCT(K) | CRI Min. | Lm Min@350mA | Lm Min@700mA | Lm Min@1000mA | VF Max. |
|---|---|---|---|---|---|---|---|
| HPF3030CZ0190-N7W7H57130X36350-4H | 5700 | 70 | 130 | 230 | 315 | 2.65~3.65 | |
| HPF3030CZ0190-N7W7H65130X36350-4H | 6500 | 70 | 130 | 235 | 315 | 2.65~3.65 |
|
Product | Peak Wavelength (nm) |
Min. Radiant Flux (mW) |
Min. Radiant Flux (mW) |
VF Max. |
|---|---|---|---|---|---|
| ELSW30-R32E1-0EPNM-AD3D8(HK) | 645~675 | 420 | 460 | 2.2 |
 |
Product | CCT(K) | CRI Min. | Lm Min. | VF Max. | Efficacy(lm/w) Typ. | PPF(μmol/s) | PPE(μmol/J) |
|---|---|---|---|---|---|---|---|---|
| XI3030P/KK8C-5M404028U6/2N | 4000K | 80 | 40 | 2.75 | 230 | 0.429 | 2.79 |
|
Product | CCT(K) | CRI Min. | Lm Min. | VF Max. | Efficacy(lm/w) Typ. | PPF(μmol/s) | PPE(μmol/J) |
|---|---|---|---|---|---|---|---|---|
| XI3030P/KKX-5M403929U6 | 4000K | 80 | 39 | 2.9 | 225 | 0.526 | 2.94 |

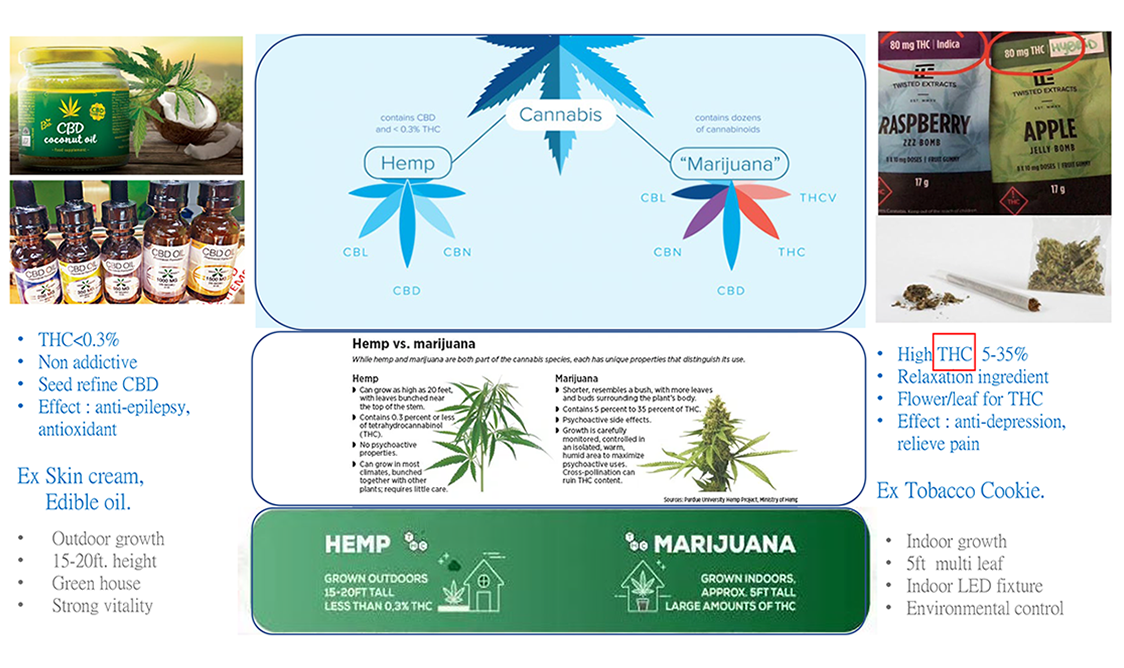

Hemp v.s Marijuana
THAILAND LEGLIZED MARIJUANA
Entertainment cannabis High THC>0.3%
| Ex. | Cat. | Light compensation point μmol/s/m² |
light saturation point μmol/s/m² |
310nm UVB |
450nm | 660nm | 730nm |
|---|---|---|---|---|---|---|---|
| Marijuana | C3 | 60-80 | 1400-1600 | Increase THC ratio | Chlorophyll α/β | Photosynthesis PSII&PSI | Vertical growth |
| LED product Shwo 3535 2W | 0.1W | ELSWF-S41L2-6FPNM-DB4B6 | ELSWN-R91E2-5EPNM-AD3D8(OR) | ELSW-Q91F1-0LPNM-AF3F8 | |||
| Radiation power mW@700mA | 2mW @20mA | 1500 | 1100 | 550 | |||
| PPF μmol/s@700mA | - | 5.28 | 6.05 | 3.35 | |||
Module
TSAN5020-M-KGL7-FU400-A001T
Dimension: 15*20cm^2*6
Power: 400W
Current: 1A
LED: EL Shwo2W
AC/DC: Full voltage
Industrial High CBD
| Ex. | Cat. | Light compensation point μmol/s/m² |
light saturation point μmol/s/m² |
450nm | 660nm | 730nm |
|---|---|---|---|---|---|---|
| Hemp | C3 | 60-80 | 1400-1600 | Chlorophyll α/β | Photosynthesis PSII&PSI | Vertical growth |
| LED product Shwo 3535 2W | ELSWF-S41L2-6FPNM-DB4B6 | ELSWN-R91E2-5EPNM-AD3D8(OR) | ELSW-Q91F1-0LPNM-AF3F8 | |||
| Radiation power mW@700mA | 1500 | 1100 | 550 | |||
| PPF μmol/s@700mA | 5.28 | 6.05 | 3.35 | |||
Module
TSAN5020-M-KGL7-FU400-A001T
Dimension: 15*20cm^2*6
Power: 400W
Current: 1A
LED: EL Shwo2W
AC/DC: Full voltage
